Integrated System
Triple Fiber Laser Micromachin Cutting Head
  • Energy variation between outputs:<3%

  • Individual output energy control unit

  • Individual focus adjustment of each output

  • No focus shift

  • High productivity

  • Standard collimation length: F75

  • Standard focus length: F 50




  • Introduction
  • Parameters
  • Dimensions
  • Download

   Our newly developed triple fiber laser micromachining cutting head S-LCH300-T equips QBH standard fiber interface and three cutting heads by splitting the energy up to three identical products manufactured in a single operation, which makes it 3 times processing efficiency compared to traditional single cutting head. The body we designed has X-Y centering adjustment for the incoming laser and Z axis for focusing adjustment. The head equips aspheric lens for collimating the beam and state-of-the-art aspheric lens configuration for optimum focus ability. It maximizes the superior beam quality and small spot sizes of fiber laser. There is a glass window with a 3° tilt angle to avoid the laser reflected to cutting head. The QBH standard interface makes the cutting head fully compatible with IPG fiber lasers.



Order information and specification:

Model

S-LCH300-T

Max input power (w)

300

Design Wavelength (nm)

1030-1090

Input interface

QBH

Max clean aperture (mm)

25

Collimating EFL (mm)

75

Focusing EFL (mm)

50

Energy   variation between outputs:

<3%

X-Y adjustment range (mm)

13

Z adjustment range (mm)

9

Weight(kg)

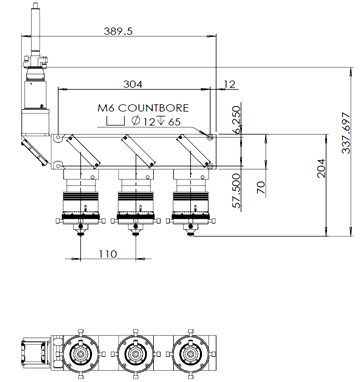

Dimension:
