Cross-roller bearing design for precision movement and large load capacity
Stage is lockable
Left- or right-handed options
Each stage will ship out with test report
Easy to stack as XYZ application
New product
Related product
- Introduction
- Parameters
- Dimensions
- Download
SLS25 High-Performance Low-Profile Crossed-Roller Bearing Linear Stages feature crossed-roller bearings running on ground steel V-ways to provide an attractive combination of high-resolution movement, low runout, and large load capacity. For stability, repeatability, and exceptionally smooth motion, actuators bear upon a hardened carbide insert. Springs provide preload against the actuator tip to eliminate backlash. To ensure consistently dependable performance, these stages are extensively tested.
A highly stable and rigid stainless steel actuator mounting system allows the actuators to be attached to the stage in either a left- or right-hand configuration. A non-influencing lock provides positive stable positioning and guards against inadvertent adjustments.
The stages are easily stacked for XY applications, and may be combined with Shinopto's adapter for XYZ configurations.
Order information and specification
| Model | Travel (mm） | Drive screw | Angular Deviation（urad） | Load capacity | Load capacity Vertical |
| SLS25 | 25.4 | Precision actuator | <150 | 320N | 60N |

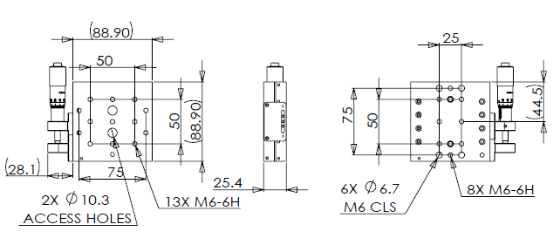

Dimension:
