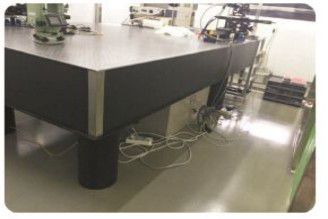

Optical table and breadboard
Shine’s breadboard is a sandwich structure consisting of three plate and a lightweight honeycomb core.It has benefits of high stiffness-weight ratie,high intrinsic frequencies, isolates low-frequency and reduce deformation amplitude induced by high –frequency vibration simulation.

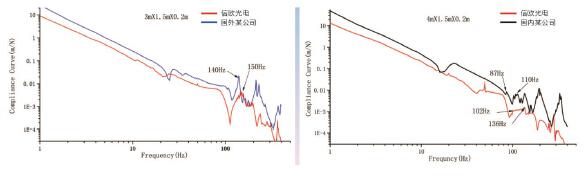

Compliance curve compare
Parameter:
Flatness | ±0.1mm/600x600mm |
Honeycomb core | Thin steel strip cellular truss, Vertical Bonding Unit |
Boardband damping | Constrained damping laminate honeycomb cell |
Mounting hole | English:1/4 hole,grid 1 inch,Margins 1 inch Metri:M6 ,grid 25mm,Margins 25mm |
Length(m) | 0.6,0.9, 1.2, 1.5, 1.8, 2.0, 2.4, 3.0, 3.6, 4.0, 4.5, 5.0, 6.0 |
Width(m) | 0.3,0.6,0.8,1.0,1.2,1.5,1.6 |
Thickness(mm) | 12.5,25,30,60,100,200,300,400,500 |
Note:Preferred Length-Thickness ratio is 10:1
Model
Model | Advantage | Application |
RS | 6mm magnetic stainless steel top plate, honeycomb core, broadband damping | Interferometer and high-resolution optical experiment, industry using |
RT | 2mm magnetic stainless steel top plate, honeycomb core, broadband damping |
|
AS | 6mm aluminum alloy top plate honeycomb core, broadband damping. The top plate is anodized |
|
AT | Top plate is aluminum alloy and anodized | Industry using and optical experiment that needs high stiffness, low weight and compact size |
PJS | Rigidly connects multiple system to provide good flatless | Long beam path or multiple experiment with single light source |
