Precision 100 TPI adjustment screw assembly
Mounts popular optics diameter 25.4mm
Compatible with Shinopto Nanomotor
Thick plates and extra-stiff springs for long-term stability
Pure tilt, without beam translation
New product
Optical mount
Related product
- Introduction
- Parameters
- Dimensions
- Download
SGM25 Gimbal Optical Mount have a radically simple way of tilting an optic without translating surface. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibration. The 100TPI precision adjustment screw can be easily changed to Shinopto Nanomotor for more precision adjustment. Hard carbide pads enable smooth, repeatable adjustment. This optical mount includes two 100 TPI locking actuators with knob providing ±5° of tip/tilt adjustment..
Order information and specification
Model | Optical diameter (mm） | Drive screw | Adjustments θx, θy | Sensitive （arc sec） | Angular range （°） |
25.4 | 100 TPI | 2 | 3.8 | ±5 |

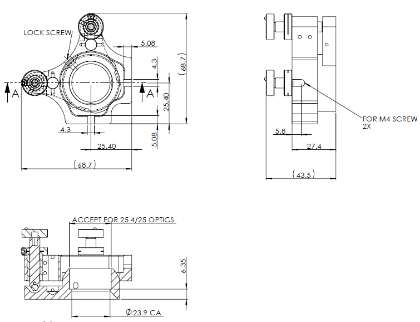

Dimension:
