● Four axes of precision positioning for lenses, objectives, and other optics
● Mounts popular optic diameters 25.4mm and 50.8 mm
● High-resolution, 100 TPI X,Y,θx,θy adjustment screws
● Angular adjustments are gimbaled about optics
● Zero-freeplay
New product
Optical mount
Related product
- Introduction
- Parameters
- Dimensions
- Download
SOLP series lens positioners provide four degrees of precision positioning for optical components. Precise 100 TPI adjustment screws with knobs including an integral hex hole allow smooth adjustment with increased sensitivity. Our zero-freeplay XY mechanism ensures accurate positioning and enhanced long-term stability, without relying on grease to take up the clearance between sliding elements, thereby reducing drift over both time and temperature. Independent locks for each axis of translation and rotation securely lock the mechanics, not just the actuator screws, maintaining stable optical alignment. Engaging or disengaging each lock has negligible influence on the other axes.
We have 3 different version, D-U version has symmetrical lens support to make mount more stable and high load capacity. S version has more compact design.
Order information and specification:
Model | Degree of freedom | Mounting diameter（mm） | XY range (mm) | θXθY range
| XY Sensitivity (µm) | θXθY Sensitivity (arc sec) |
SOLP4D-U | XY θXθY | 50.8 | ±3.0 | ±5° | 0.75 | 1 |
SOLP4D | XY θXθY | 50.8 | ±3.0
| ±5° | 0.75 | 1 |
SOLP4S | XY θXθY | 30 | ±3.0
| ±5° | 0.75 | 2 |
Dimension：

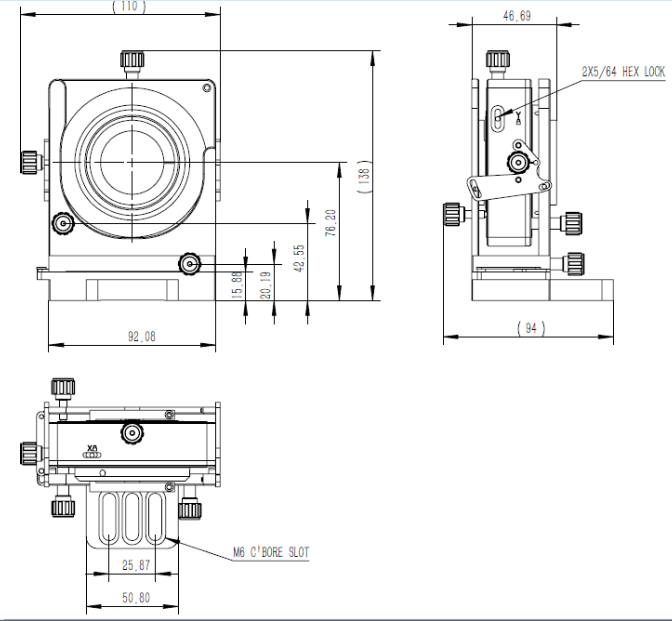

SOLP4D

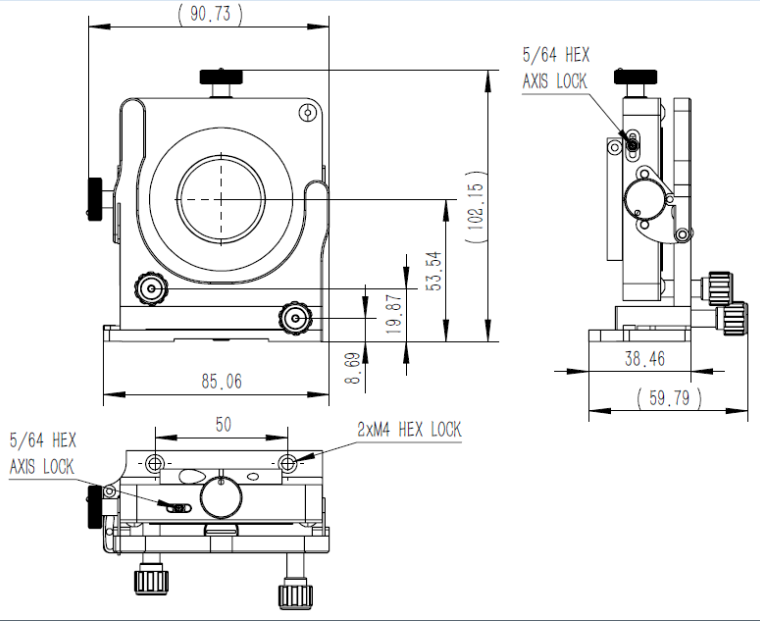

SOLP4D-U
