l Precision easy-change 100TPI screw assembly
l Mounts popular optics diameter 25.4mm
l Compatible with Shinopto Nanomotor
l 4 groups extra-stiff spring provide long-term stability
New product
Optical mount
Related product
- Introduction
- Parameters

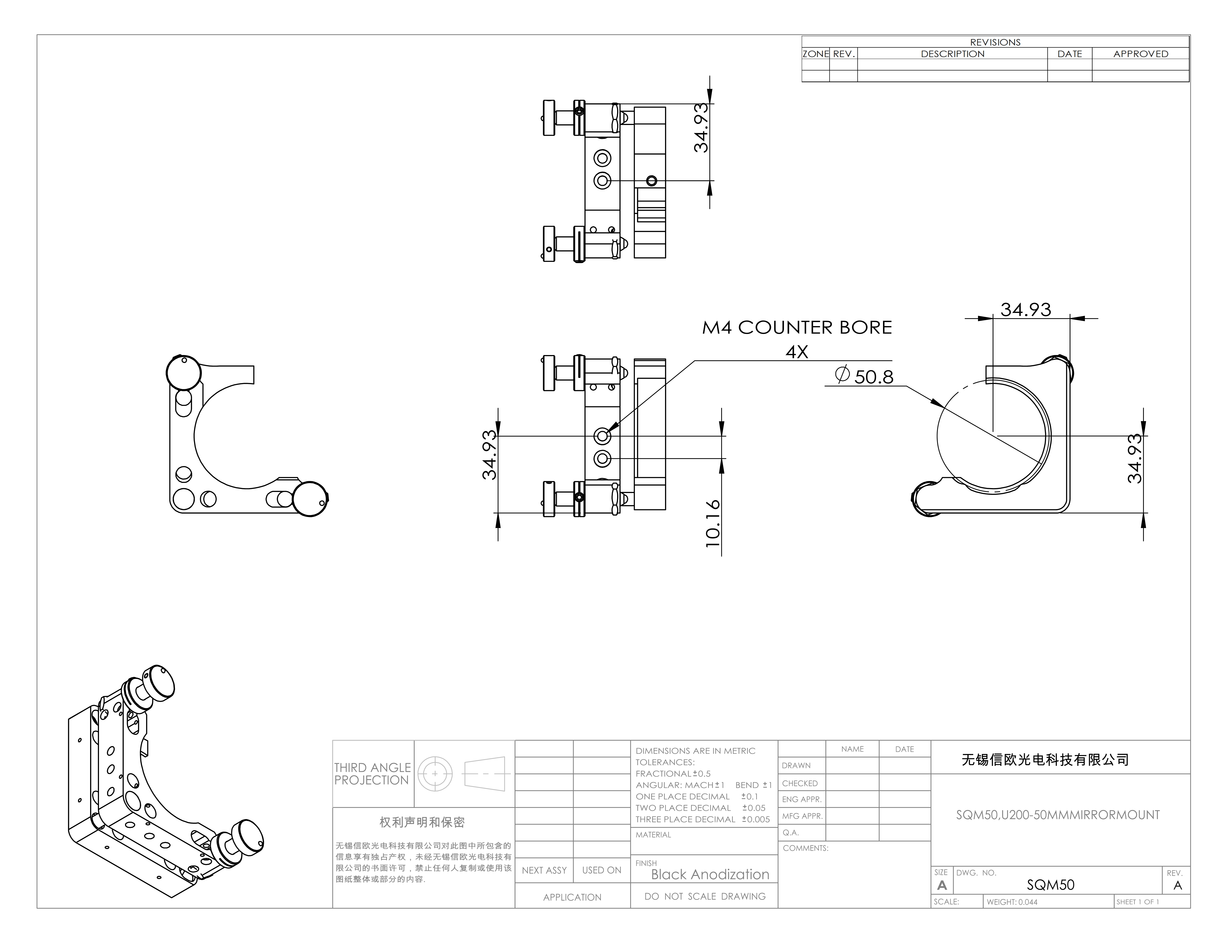

- Dimensions
- Download
Our SQM50 mirror mount offers unsurpassed functionality. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibrations. The actuators can be quickly changed to our Nanomotor for more precision adjustment. Hard carbide pads enable smooth, repeatable adjustment. This optical mount includes two 100 TPI locking actuators with knob providing ±7° of tip/tilt adjustment.
Order information and specification:
Model | Optical diameter (mm） | Drive screw | Adjustments θx, θy | Sensitive （arc sec） | Angular range （°） |
SQM50 | 50 | 100 TPI | 2 | 3.8 | ±7 |
